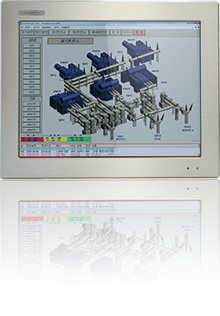

ATP1B15-S
15 inch 1.6GHz Low-heat, Low-power Touch Panel
ATP series are low-heat, low-power, high-performance and stable touch panels. It's aluminium front and metal case are luxurious and durable. Autobase SCADA Software has been pre-installed. So you can save the system configuration cost. And ATP Touch panels support a variety of ports and has excellent scalability.

Autobase SCADA software installed
ATP touch panels come with Autobase SCADA and which can help you configure systems economically
It is easy to reuse project and that helps developers to save their valuable time and efforts.
Low-power, low-heat, stable performance
This product is a low-heat, low-power, simple maintenance, suitable for the system to put priority on stability.
High-end Aluminium front and metal case has good heat dissipation and excellent durability
Specifications
Display 15 inch XGA(1024*768)
CPU Intel ATOM N270 1.6 GHz (FSB:533/667 MHz)
Touch Controller PenMount USB Controller
Mainboard Intel 945GSE, ATOM Compatible
Memory 2GB DDR2(667Mhz/PC5300)
Storage SSD 120GB
(Max Read:450MB/s, Write:410MB/s)
VGA Intel GMA 950 Graphics Dual Channel 128MB(LVDS/Analog)
Audio Mic-in, Line-out
Ethernet 2 Ports (Gigabit LAN)
Serial Port 4 Ports
(RS-232C 3Ports, RS-232C/422 Optionanl 1Port)
USB 4 Ports
Keyboard/Mouse Mouse 1 port, KeyBoard 1 Port (PS/2)
CD-ROM -
OS Windows Embedded Standard 7
Utility EWF(OS Protection),
Recovery(The factory state recovery) Software
Input Power AC 115~230V(50~60Hz)
Power Consumption 43W~55W
Option
SSD 250GB Upgrade SSD 120GB with SSD 250GB
HDD 500GB Replace SSD 120GB with HDD 500GB
( SATA2 / 7200 rpm / 16M )
LCD Stand PS-20S(Prime Direct)
