ATS-
M1000DA19C
19 inch Dual Core Touch Panel ATS-M1000DA19C
ATS-M1000 Series touch panel computers are low-heat, low-power, high-performance systems. More of all, durability is excellent. And then, Autobase SCADA CE
Software has been pre-installed by default.
*Reference Document
Ease of development-Windows CE embedded touch panel computer
Windows Compact 7(CE 7.0) OS is installed by default, so it is easy for software engineers to develop and deploy, using Visual Studio
2008/2004 (language C# .Net/Basic .Net/C++).
*View more details
Economical system configuration! Autobase SCADA CE preloaded!
SCADA Softwares are high price but ATS-M1000 Series touch panels come with Autobase SCADA CE and which can help you
configure systems economically. Even if you have not Visual studio or any other database program, you can develop systems using Autobase SCADA CE for automation
fields, high-tech industry, medical devices and etc.. Especially, we have developed vast amounts of communication drivers and which are offered free.
*View more details
High-performance 1GHz Dual Core CPU
The ARM® Cortex®-A9 processor is the power-efficient and popular high performance choice in low power or thermally constrained
cost-sensitive devices.
Robust and slim design
Ultra-thin and modern appearance of the ATS-M1000 series's metal case is easy to mount and more robust.
It has excellent durability.
Customized product manufacturing
Autobase provides customized automation solution and user-specific touch panels.
For this, we adapt our products with the modifications necessary to satisfy your requirements: from minor design changes right to OEM-hardware and software
systems.
Specifications |
Display |
19inch (1280x1024) |
CPU |
Cortex-A9 Dual 1,000MHz |
Memory |
DRAM 512MB DDR3, NAND Flash 512MB
(Option : DRAM 1GB DDR3, NAND Flash 1GB) |
Serial Port |
4 Ports (RS-232C 3 Ports, RS-485/232C 1 Port) |
USB |
USB Host 2 Ports, USB Device 1 Port |
HDMI |
1 Port |
Extension Port |
GPIO(16EA), PWM(2ch), A/D Converter(4ch) |
Audio |
Speaker, Audio Out(Stereo 3.5Φ Audio Jack)
1 Mic(Option) |
Ethernet |
1 Port (Gigabit) |
SD Card |
1 Slot(SDHC up to 32GB, SDXC up to 2TB) |
Touch Screen |
4-wire resistive |
Voltage |
DC 12~24V |
Power consumption |
17W |

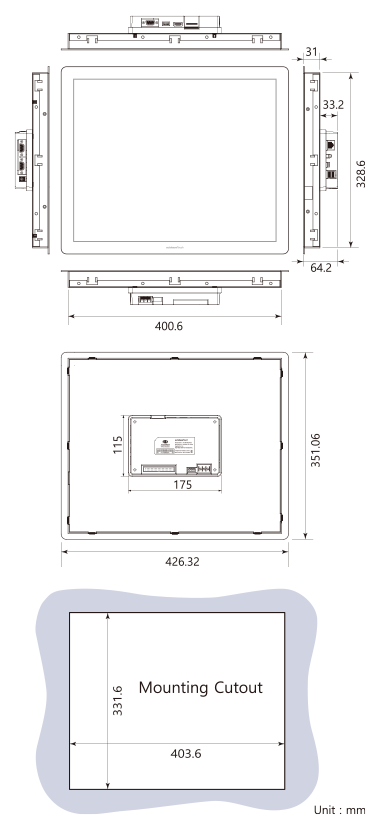

Dimension(mm) |
426.32mm(H)*351.06mm(V)*64.2mm(D) |
Operating Temperature |
-10~70˚C |
Camera |
Option |
OS |
Windows Compact 7 (CE7) |
