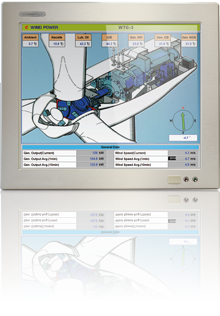

ATP17-S
17inch 1.9GHz Dual Core Touch Panel
ATP series are low-heat, low-power, high-performance and stable touch panels. It's aluminium front and metal case are luxurious and durable. Autobase SCADA Software has been pre-installed. So you can save the system configuration cost. And ATP Touch panels support a variety of ports and has excellent scalability.

Autobase SCADA software installed
ATP touch panels come with Autobase SCADA and which can help you configure systems economically
It is easy to reuse project and that helps developers to save their valuable time and efforts.
Low-power, low-heat, stable performance
This product is a low-heat, low-power, simple maintenance, suitable for the system to put priority on stability.
High-end Aluminium front and metal case has good heat dissipation and excellent durability
Specifications
Display 17 inch SXGA(1280*1024)
CPU Intel ATOM E3845
Dual Core 1.9 GHz
Touch Controller PenMount USB Controller
Mainboard Intel ICH8M chipset, ATOM Compatible
Memory 4GB DDR3L(1066Mhz/PC8500)
Storage SSD 120GB
(Max Read:500MB/s, Write:400MB/s)
Graphic Controller Intel HD Controller
VGA VGA 1 port, DVI 1 port, Display Port 1 Port
Ethernet Dual Gigabit Ethernet (10/100/1000Mbits/s)
LAN 2 Ports
Serial Port RS-232C 2 Ports
USB USB 2.0 2 Ports, USB 3.0 1 Port
Keyboard/Mouse USB type
CD-ROM -
OS Windows Embeded Standard 7
Utility EWF(OS Protection),
Recovery(The factory state recovery) Software
Input Power DC 12V
Power Consumption 43W~55W
Waterproof X
Option
SSD 250GB Upgrade SSD 120GB with SSD 250GB
HDD 500GB Replace SSD 120GB with HDD 500GB
( SATA2 / 7200 rpm / 16M )
LCD Stand PS-20S(Prime Direct)
