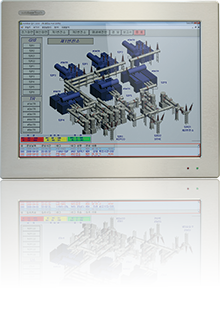

ATH15-S
15 inch 2.6GHz Ultra-high Performance Touch Panel
High-performance, high-end touch panel, equipped with i5 CPU.
Aluminium front and metal case, ATH15 is luxurious and durable.
Autobase SCADA Software has been pre-installed by default. So you can save the system configuration cost. And ATH15 supports a variety of ports and has excellent scalability.

Ultra-high Performance Touch Panel Computer
ATH's 2.6GHz fast CPU performance is suitable for complex and high-level system configuration.
System Features
ATH has good scalability-DVI and HDMI ports, and four USB ports, 2 Ports of Gigabit Lan. It helps you configure a fast network.
And, equipped with very stable motherboard, the Intel QM57. So you can operate the system more reliably.
Specifications
Display 15 inch XGA(1024*768)
CPU Intel i5 CPU M560 2.6GHz (FSB 1066MHz)
Touch controller PenMount USB controller
Mainboard Intel QM57
Memory 2GB DDR3 (1066Mhz/PC8500)
Storage SSD 120GB, Raid 1
(Max Read:450MB/s, Write:410MB/s)
VGA Intel GMA 950 Graphics Dual Channel 128MB(LVDS/Analog)
Audio Mic-in, Line-out
Ethernet 2 Ports (Gigabit LAN)
Serial Port 2 RS-232C Port
USB 4 Ports
Keyboard/Mouse USB type
CD-ROM -
OS Windows Embeded Standard 7
Utility EWF(OS Protection),
Rescue(The factory state recovery)
Input Power AC 115 ~230V
Power Consumption 113W
Option
SSD 250GB Upgrade SSD 120GB with SSD 250GB
HDD 500GB Replace SSD 120GB with HDD 500GB
( SATA2 / 7200 rpm / 16M )
LCD Stand PS-20S(Prime Direct)
