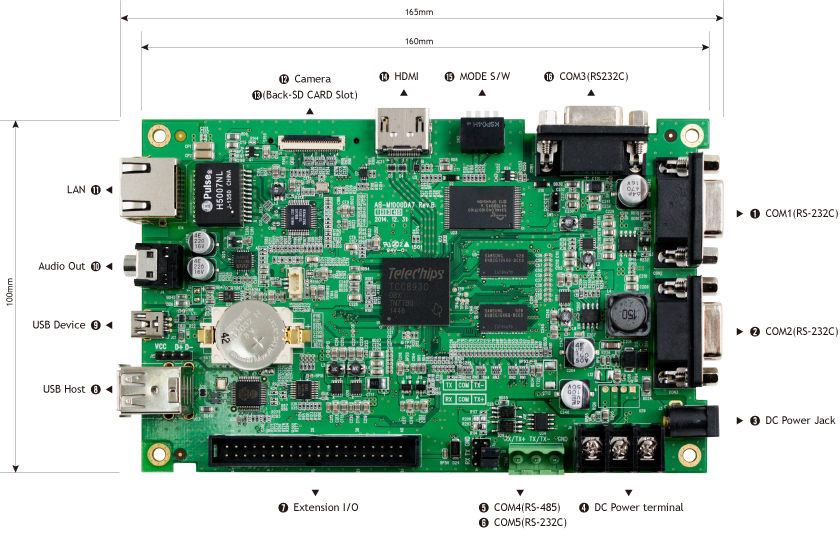

1GHz Dual Core Embedded Mainboard AB-M1000DA7
Windows CE embedded mainboards AB-M1000DA series, equipped with The ARM® Cortex®-A9 1GHz dual core cpu, are simpler, generate less heat, and are much more energy efficient. These characteristics can yield more reliable operation in harsh environments. And then, Autobase SCADA CE has been installed by default. So you can configure systems more economically.
*Refernece Document *Detail drawings
Windows CE embedded mainboards AB-M1000DA series, equipped with The ARM® Cortex®-A9 1GHz dual core cpu, are simpler, generate less heat, and are much more energy efficient. These characteristics can yield more reliable operation in harsh environments. And then, Autobase SCADA CE has been installed by default. So you can configure systems more economically.
*Refernece Document *Detail drawings
Windows Compact 7(CE 7.0) OS is installed by default, so it is easy for software engineers to develop and deploy, using Visual Studio 2008/2004 (language C# .Net/Basic .Net/C++).
*View more details
*View more details
SCADA Softwares are high price but ATS-M1000 Series touch panels come with Autobase SCADA CE and which can help you configure systems economically. Even if you have not Visual studio or any other database program, you can develop systems using Autobase SCADA CE for automation fields, high-tech industry, medical devices and etc.. Especially, we have developed vast amounts of communication drivers and which are offered free.
*View more details
*View more details
The ARM® Cortex®-A9 processor is the power-efficient and popular high performance choice in low power or thermally constrained cost-sensitive devices.
Autobase provides customized automation solution and user-specific touch panels For this, we adapt our products with the modifications necessary to satisfy your requirements: from minor design changes right to OEM-hardware and software systems.
| Specifications | |
| CPU | Cortex-A9 Dual 1,000MHz |
| Memory | DRAM 512MB DDR3, NAND Flash 512MB |
| Serial Port | 4 Ports (RS-232C 3 Ports, RS-485/232C 1 Port) |
| USB | USB Host 2 Ports, USB Device 1 Port |
| HDMI | 1 Port |
| Extension Port | GPIO(16EA), PWM(2ch), A/D Converter(4ch) |
| Audio | Speaker, Audio Out(Stereo Earphone Jack) |
| Ethernet | 1 Port (Gigabit) |
| SD Card | 1 Slot (SDHC up to 32GB, SDXC up to 2TB) |
| Voltage | DC 9~24V |
| Power consumption | 5W |
| Dimension(mm) | 165(H)*102.2(V)*21.5(D) |
| Operating Temperature | -10~70˚C |
| OS | Windows Compact 7 (CE7) |
