AutoBase Converter ACS-C485
An industrial automatic conversion converter can be connected to a variety of
communication equipment without a separate program. Also this product can be
used conveniently in industrial field because operational power is supplied through
the signal line from the RS-232C without a separate source. RS-422/485 data
collision protection is possible because it supports auto-togling.It supports
communication speeds of up to 460 kbps.
RS232 extension cable is available. Also it can be connected to an external power source to improve performance.
*Reference Document
An industrial automatic conversion converter can be connected to a variety of
communication equipment without a separate program. Also this product can be
used conveniently in industrial field because operational power is supplied through
the signal line from the RS-232C without a separate source. RS-422/485 data
collision protection is possible because it supports auto-togling.It supports
communication speeds of up to 460 kbps.
RS232 extension cable is available. Also it can be connected to an external power source to improve performance.
*Reference Document
Operation temperature is supported -40°C to 85°C. So this product safe to use.
It can be protected from the abnormal voltage of the surge because this product absorb 600W surge impact.
It's easy to use depending on the situation because this product supports communication distances up to 1.2 km.
This product can be connected up to 10 devices. User can easy to use.
Auto-togling is a function that automatically controls I/O to prevent data collision. This product support auto-togling.
| Specifications | ||||||
| Communication mode | Asynchronous Serial Communication | |||||
| RS-485/422 mode | Point to Point, Multi-Drop | |||||
| Maximum communication speed | 460kbps | |||||
| Maximum communication distance | 1.2km (When using the 24 AWG twisted pair cable) |
|||||
| Connector | RS-232C : DB9 Female RS-422/485 : Terminal Block 4 Pin |
|||||
| Signal line |
RS-232C : TXD, RXD, RTS, DTR RS-422 : TXD+, TXD-, RXD+, RXD- RS-485 : TRCD+, TRXD- |
|||||
| Deep switch | Select RS-485/422 Terminating resistance ON/OFF Signal Line pull-up/pull-down ON/OFF |
|||||
| Power |
*No power : Supplied from RS-232C TXD, RTS, and DTR signals*Power : USB Type Direct Current Power Use DC5V Adapter or USB Power (power consumption : below 5V 500mA) Use when power statue LED("PWR") is not
illuminated or when need to improve performance |
|||||
| Static electricity protection | Contact ±8KV, Air ±15KV | |||||
| Surge shock absorption | 24A, 600W | |||||
| Operating temperature | -40~85℃ | |||||
| Humidity | 5~95% Noncondensing | |||||

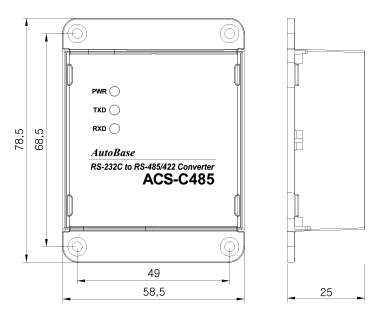

| Size(mm) | 59*78.5*23 | |||||
| Manufacturing country | Republic of Korea | |||||
| Manufacturing company | Autobase Inc. | |||||
| Warranty period | 1 year | |||||
| KC authentication number | R-R-ABH-ACS-C485 | |||||
|
|
||||||
